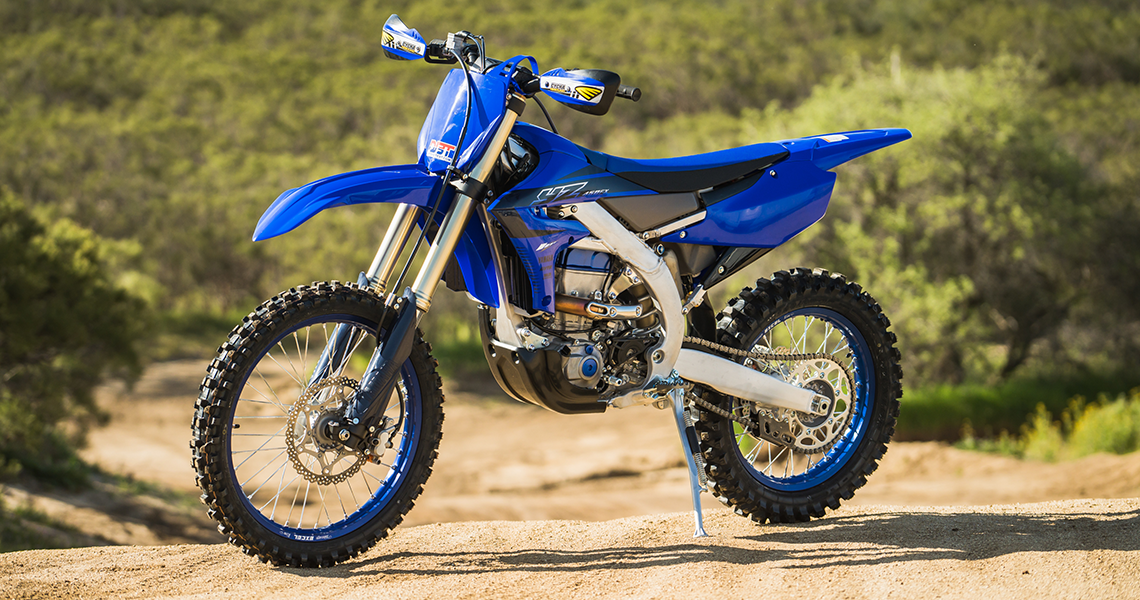

2023 Yamaha YZ450FX

A Proven Machine

MSRP: $9,999

  • Durability
  • Neutral bike that appeals to the masses in stock trims.
  • Power tunability with the GYTR tuning app.
  • Doesn't require many aftermarket parts to be made better.
  • GYTR app can be daunting to new users.
  • Scale weight can be heavy under extreme conditions.


  • Writer: Trevor Hunter
  • Photographer: Trevor Hunter
  • Videographer: Trevor Hunter/Logan Stupin

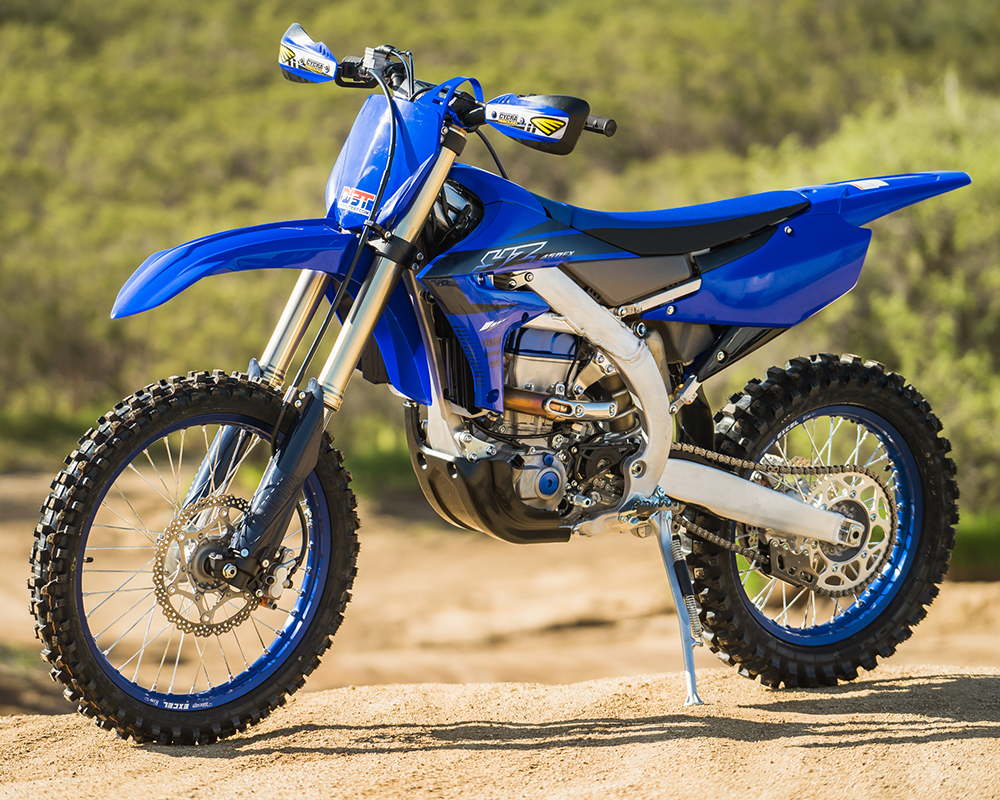

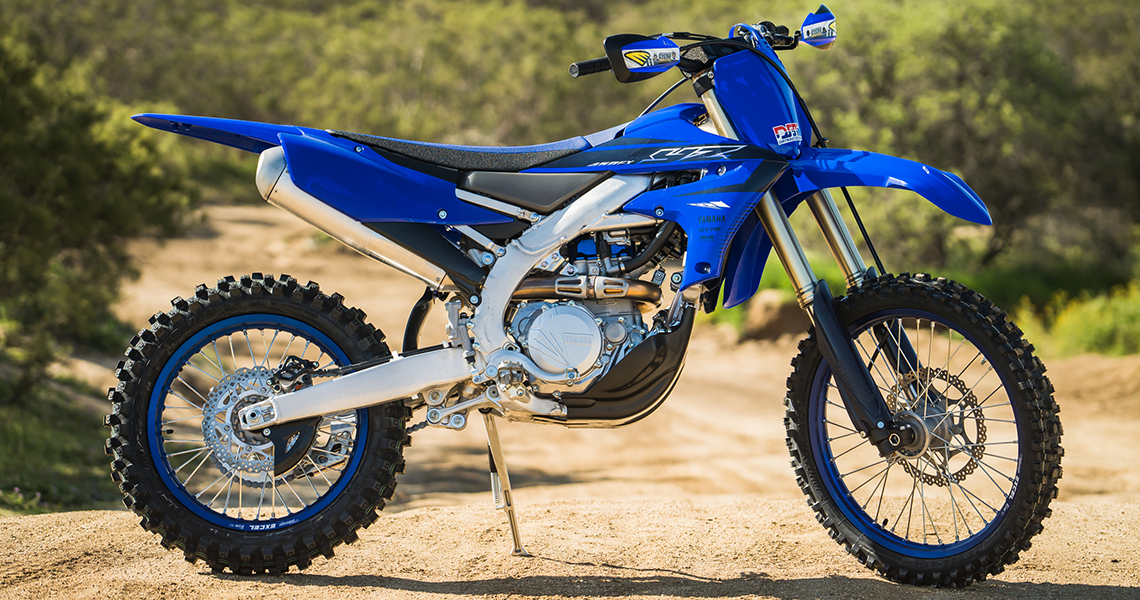

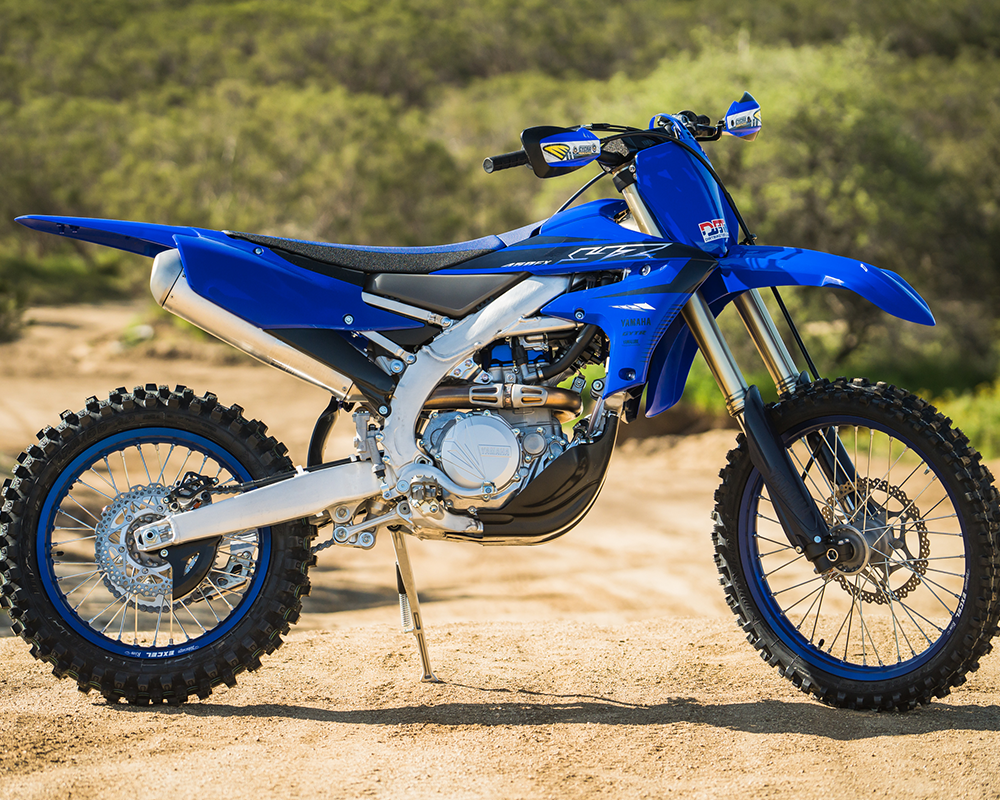

  • Yamaha's big bore off-road racer based off the YZ450F

Yamaha’s unique engine and chassis design has seen mixed reviews over the last decade as they continue to push the boundaries with a backwards engine. The 450cc four-stroke powerplant in particular has been more polarizing than not; however, it has seen more and more success as of late, including with the YZ450FX off-road race bike. Eli Tomac had a career year in his first foray with the similar platform YZ450F last year, and the AmPro Yamaha Team has been at the front of the pack the past few seasons on this same bike. For 2023, the YZ450FX remains the same as it did in 2021 and 2022, but is that a bad thing?

"For 2023, the YZ450FX remains the same as it did in 2021 and 2022, but is that a bad thing?"

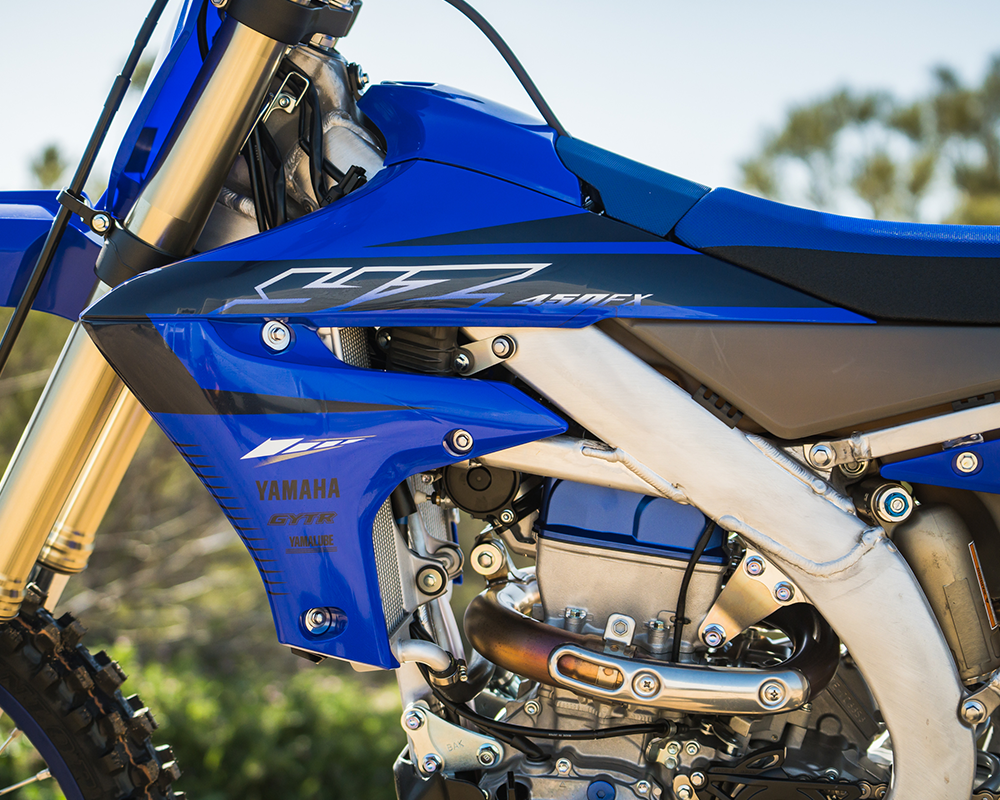

  • Bold New Graphics.

NONE. Graphics are the only change from 2021 to 2022 to 2023. If you'd like to see what Yamaha unveiled in 2021, check out our Bike Test HERE.

"Graphics are the only change from 2021 to 2022 to 2023."


  • GYTR Power Tuner App is a winner.
  • Broad, smooth power delivery that can be adjusted at the click of a button.
  • Easy to use mapping switch.
  • Transmission is broad and covers all the bases.

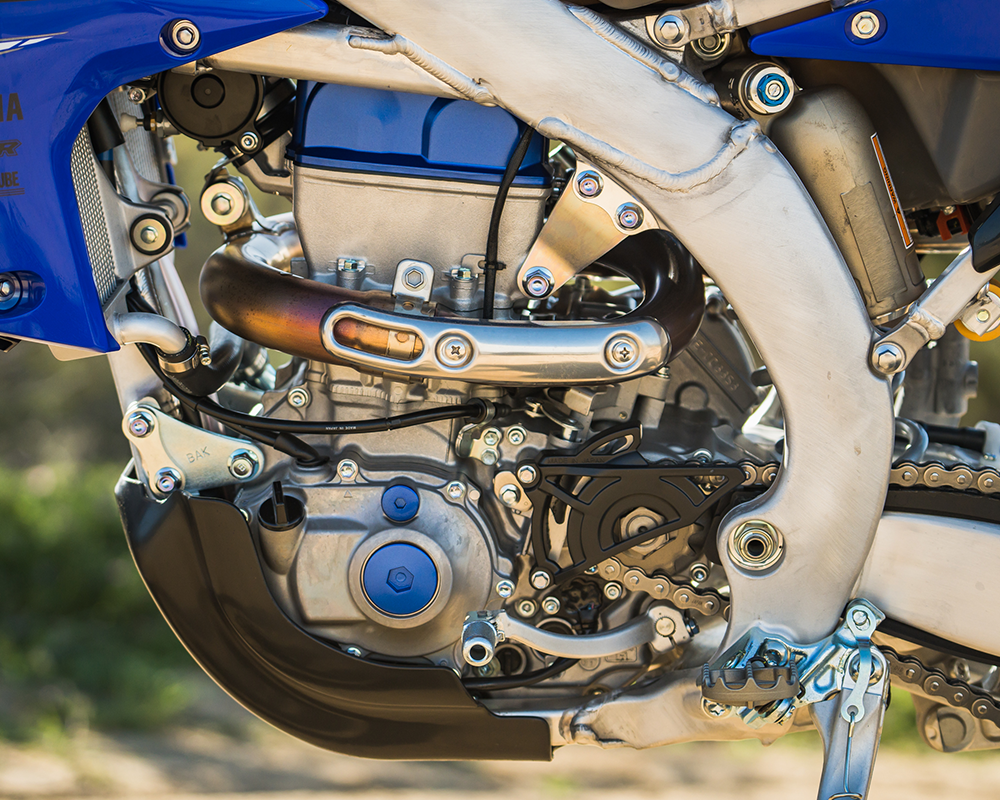

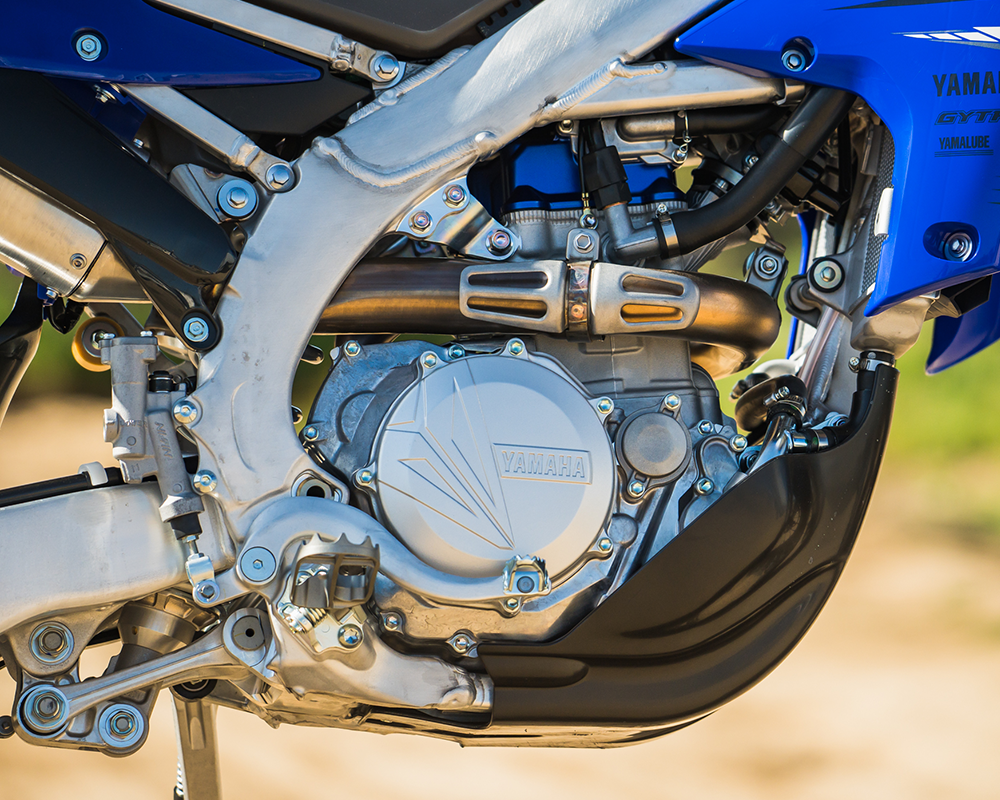

If there is one thing the bLU cRU has gotten good at over the past few years, it is getting a lot of power out of their engines and this YZ450FX doesn’t disappoint. Like the YZ450F, the FX model too packs a mean punch and delivers the goods whenever and wherever you want it. Though the MX and off-road race bikes feel similar in power, there is a difference when ridden back to back. Is it the old school, mellow and lazy feeling power that won’t get you up out of bed in the morning? No, not at all. To keep with the trends, Yamaha “detuned” the power just enough for it to translate to an off-road environment without removing its aggressive nature.

The bike has a fairly free-revving motor, though it pales in comparison to say a KTM who would be at the top of the charts in this kind of power delivery. Instead, the YZF pilots a smooth yet quick revving engine with torque and power down low. Unlike most of the other bikes in its class, the Yamaha can be lugged deep and roll around at low RPMs without much abuse of the clutch whereas the others like to stall out easier and need more rolling speed to stay afloat. Part of that is due to the transmission (which we’ll get to later), but also due to how the motor runs. From the bottom up, the power is very smooth with no big surges, making it easy to ride even when there is a lot of power on tap. With all of the torque and bottom end power, the bike can and does respond well to riding taller gears. There is more than enough power in the mid-RPMs and it helps with the chassis and handling feel when ridden in the sweet spot.

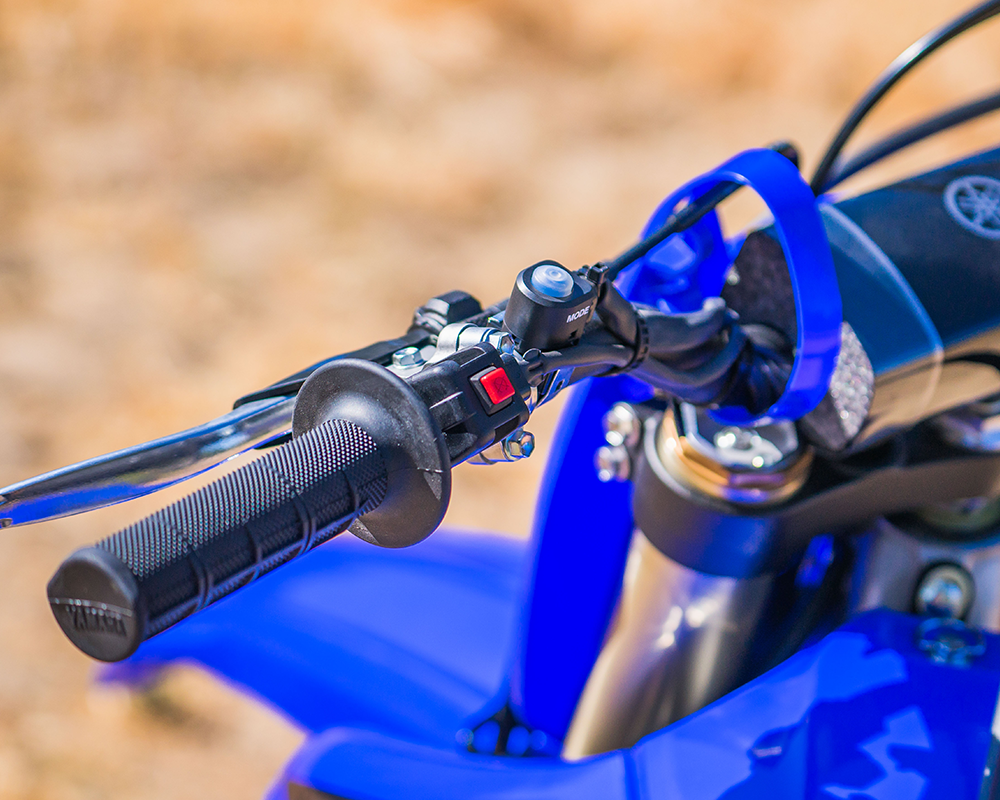

The 450FX comes equipped with a mapping switch and it’s very easy to change on-the-fly, maybe the easiest out of all mapping switches. You can be racing at full speed and reach your thumb over to change maps and know for certain the mission was accomplished. Trust us, we’ve done it plenty of times. Whereas most other brands you have to sit there and hold the button down and put a serious effort into changing maps. With that being said, Map 1 (light off) is standard and Map 2 (light on) is pre-programmed to be a mellower map even when both maps are at all zeroes. This means that no matter what, the map in Map 2 will always be different from the same map that is in Map 1.

With both maps at all zeroes, Map 1 was a little too aggressive for most of our riders. It was very light feeling and jerky off the bottom, making it hard to ride, reminiscing an MX setting. Riding a gear tall helped this, but even then it was still too abrupt and surged when cracking open the throttle. Map 2; however, is easier to manage with a smoother delivery and pull. With some time on the YZ450F the past two years, some of our testers have come to like the “Magic Map” developed by the Yamaha crew and those same feelings translated over to the FX in most cases. On motocross tracks or faster terrain where you can carry speed, the Magic Map did its job in smoothening out the power. It eases off the initial hit but still carries good pulling power and enough “excitement” to keep the power lively, with some saying it revs out quicker like a 350cc four-stroke. Additionally, the map still allows us to ride taller gears or even rev the bike and ride it more like a 350cc four-stroke without getting away from us.

Where the Magic Map falters for us is in tight, techy terrain. It’s still too abrupt and hard to manage at the blip of a throttle, especially when traction is at a premium. The stock Map 2 with all zeroes is pretty good here, but we also liked the “JL Smooth” map (see photos) a tad more here. It really tamed it down with a smooth throttle response and you could chug the bike through a lot more without the clutch. The JL Smooth map is what we primarily run in our 450FX (either in Map 1 or Map 2 on the switch).

The transmission on the FX is interesting. In that case, the Yamaha really sticks out compared to the rest of the bikes in this sector. Every other 450cc “FX” model from the main players uses the same transmission and motor package as the MX offering except for Yamaha. They plugged in a semi-wide ratio transmission with lower 1-2 gears and taller 4-5 gears. For us, we really haven’t found a use for 1st gear. It's really, really low and with 2nd still being low, even in the tightest terrain we found ourselves using 3rd gear more often than not and just covering the clutch. This helped retain a smoother, less jerky power off bottom and easier to ride. For any moto and typical off-road riding, 3rd gear was used quite a bit and we never really ventured below that. The motor has enough meat to pull it off in a smooth, lower RPM manner and is easy to ride in this gear.

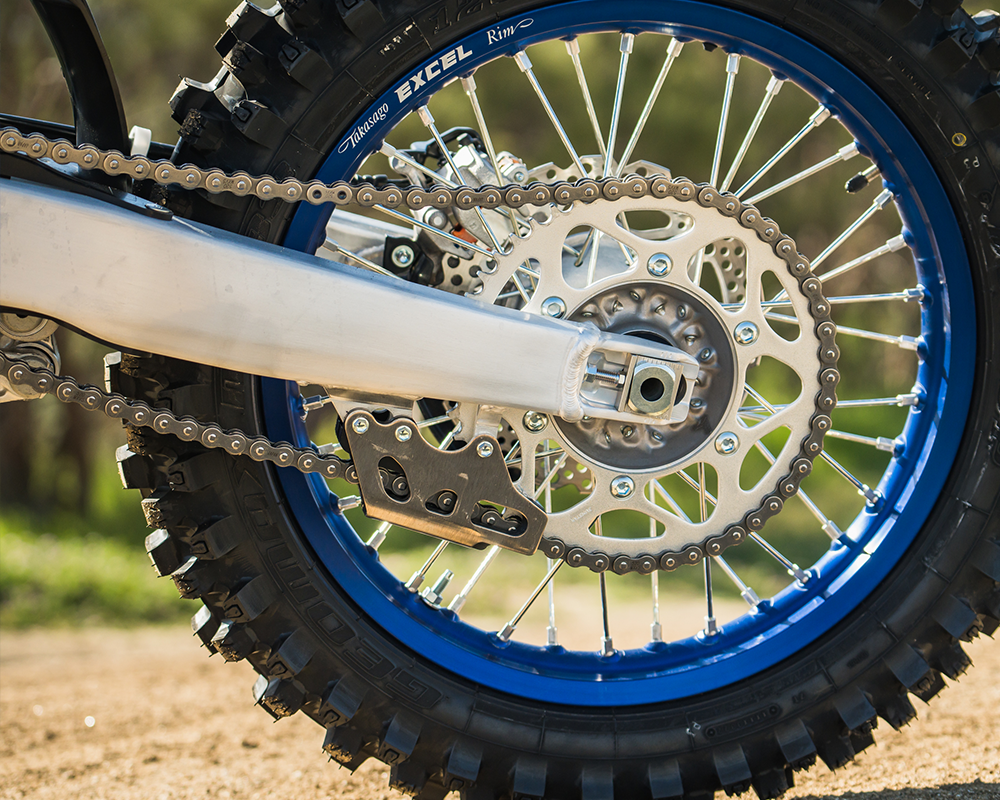

We messed around with gearing and found 13/50 is a really good setup. However, we ventured off to going up in sprocket sizes on both ends in search of better handling. We settled on 14/52 as our gearing of choice. It's just tall enough that it moved us down one gear in nearly every scenario. With stock gearing, we'd typically run third, fourth, and fifth gears only. With the larger gearing setup, it's moved everything down to where we run second gear much more. Essentially, the change gave us an extra gear. If we were to primarily ride this bike in the woods, the gearing would be a bit tall and we wouldn't prefer to run it in most cases. On the moto tracks, we occasionally find ourselves in between second and third gear in some corners, but for the most part it's a change we like.

Clutch pull is fairly light for a cable clutch on a 450cc machine and we never found ourselves wishing we had a hydro clutch. Durability of the clutch has been good as well. We put ~42 hours on the stock clutch before changing it as a precautionary measure. Shifting is smooth and precise and we never found any faults in that department. With the stock 2.2 gal tank, we could go ~50 miles on a tank in fast conditions.

"With all of the torque and bottom end power, the bike can and does respond well to riding taller gears. There is more than enough power in the mid-RPMs and it helps with the chassis and handling feel when ridden in the sweet spot."

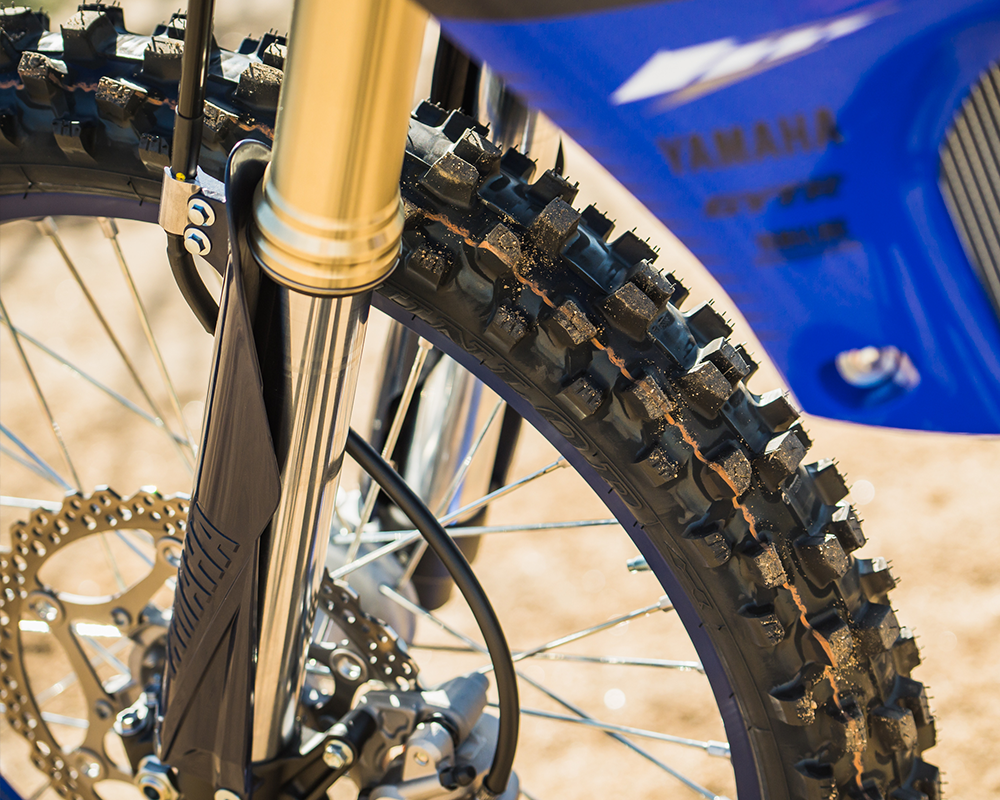

  • Stiffer fork springs transformed this bike.
  • Stock fork valving offers good comfort and progression with the right spring rates.
  • Shock works well for most average riders.

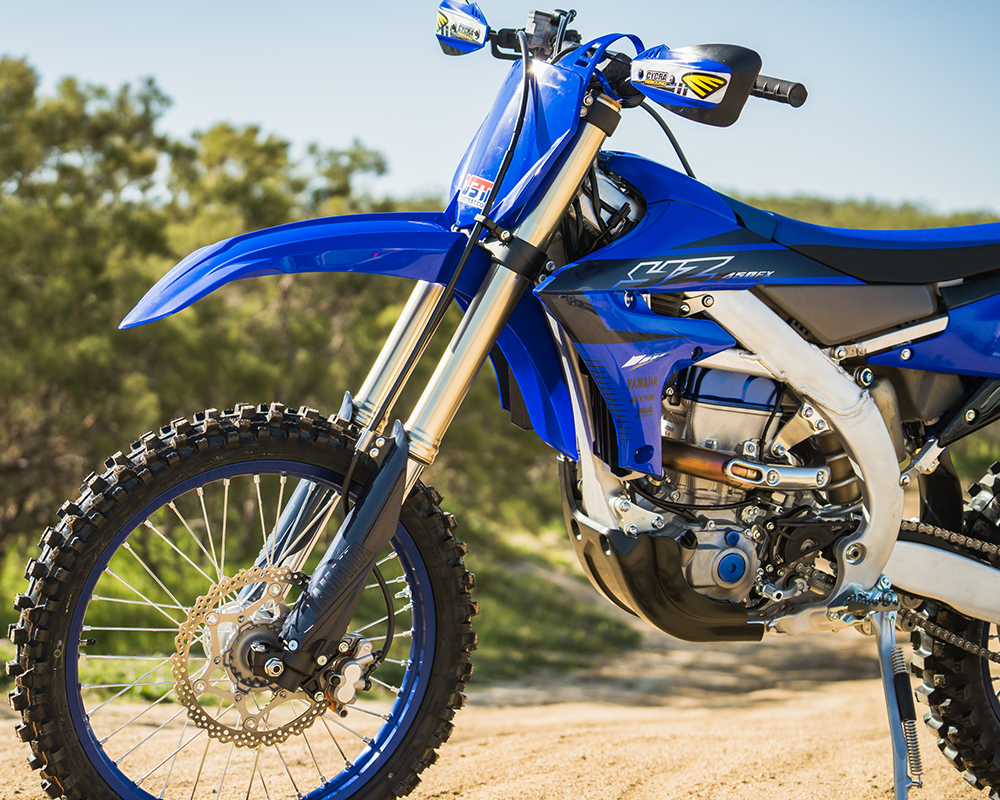

In general, Yamaha has gravitated to a more GNCC style, plusher setting in their off-road bikes and this one is no different. It’s somewhat softer in nature, provides comfort and traction, and appeals to the masses. The suspension likes to move through the stroke, but in a progressive manner to avoid any hard bottoming. Like every other Yamaha as of late, the KYB components shine in bottoming resistance and having a “smooth” transition when bottoming. You never get the metal to metal clanking and wrist breaking feeling on this stuff.

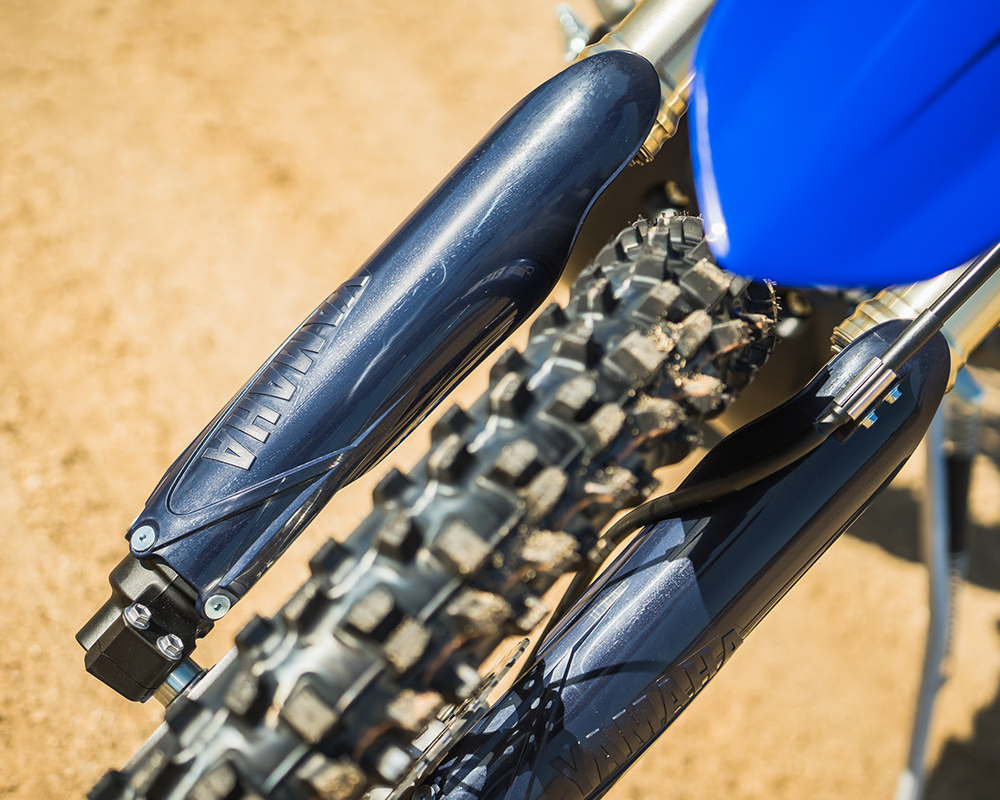

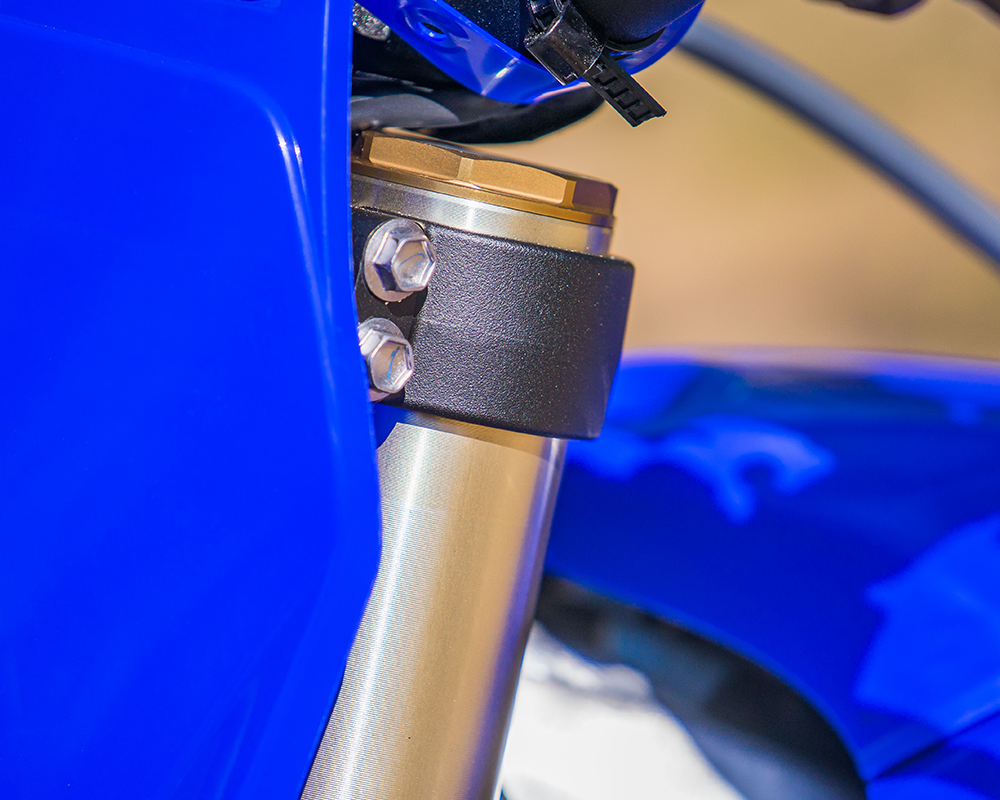

We found increasing the fork spring rate from stock (.46kg/mm) to .48-.52kg/mm springs helped tremendously in pretty much every area. With riders 160lbs and up on the bike, the heavier springs helped the bike ride higher in the stroke, offering a lot more comfort over small chop with better initial bump absoption and just a balanced bike overall. As we went up in spring rates past .48kg/mm (for 160lb riders), you do start to lose some of the initial compliance and front end traction cornering, but you increase bottoming resistance and have a less active fork. Faster and heavier riders can appreciate the stiffer springs, but most will find a lot of benefits from running at least .48kg/mm springs. Overall, the stock fork valving is pretty good, the soft springs just mask it a bit.

In addition to the fork springs, we opted for the same yet different shock spring. We stuck with the 5.7 kg/mm shock spring for 160lb+ riders, but installed a “closed end” spring rather than the “open end” that comes stock. While this is more for a rider preference, it does change the handling quite a bit. With the closed end spring, we were again able to get a better balance out of the bike and keep the rear end flatter upon corner entrance. Again, this is more of a rider preference feel, but it is a change we made and liked after putting the stiffer fork springs in. The stock shock valving is on the softer side for fast riders and deep conditions, but most average riders can find good comfort and performance in it.

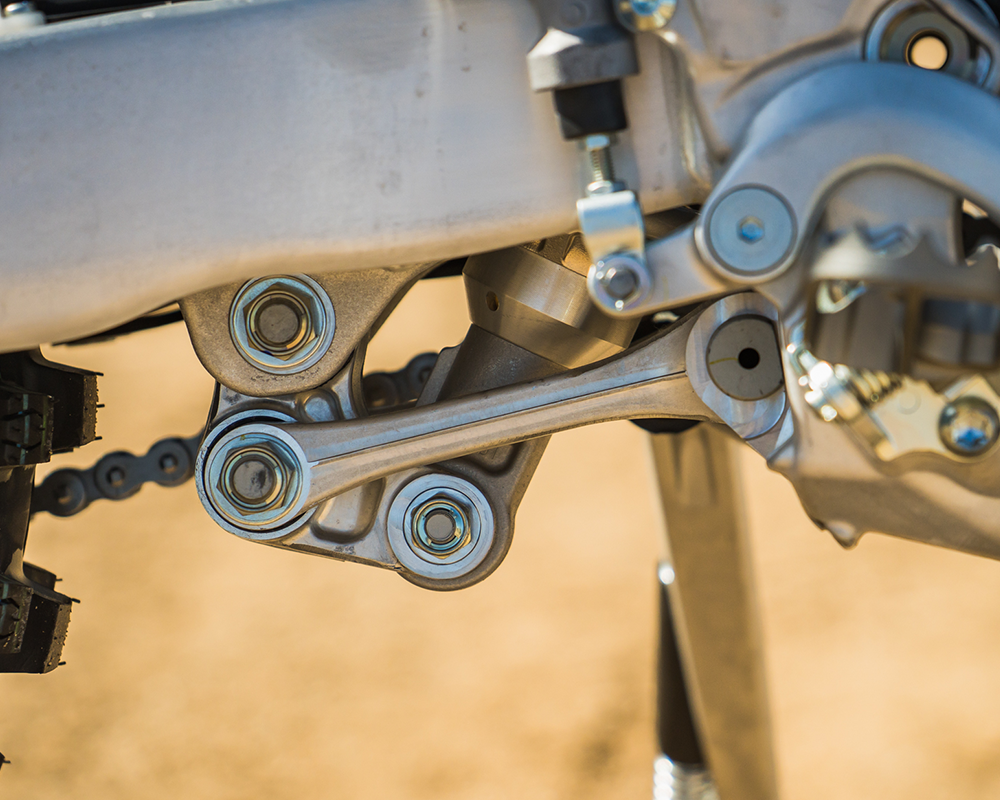

A rather simple change we did to our rear shock was shorten it 3mm. This same change can be mimicked with a lowering link. The rear of the Yamaha sits a little tall, and we were running sag around 108mm to get stability and keep the rear end lower upon corner entrance. This mod dropped our sag to 100mm which puts less preload on the spring and settles on decel bumps better. Likewise, it gave the bike a better balance all around.

"We found increasing the fork spring rate from stock (.46kg/mm) to .48-.52kg/mm springs helped tremendously in pretty much every area."

Chassis - Handling

  • More nimble and agile chassis feel.
  • Scale weight doesn't translate to handling feel.
  • Cockpit could use some work.

The handling of the YZF’s can and has been a hot topic in past years, but this latest generation Yamaha has turned some heads. From the ‘19-20 FX model years, this newest chassis is more performance based with increased agility and precision. The old frame design lent itself to more of a Cadillac feel whereas this generation comes closer to a racey sports car. That’s not a bad thing however. The bike still offers a lot of stability and comfort to the rider, especially in comparison to some of the other bikes out there. If anything, it just adds that little extra precision needed when pushing the limits and makes the bike feel a little lighter in the process.

Despite a heavy scale weight, that doesn’t translate to the track or trails unless you’re physically manhandling your bike -- trust us, we did at one point. But for most situations, the weight of the bike isn’t felt in a negative way, more so in a positive way. It helps keep the bike planted and straight, boosting that stability talked about earlier. While it might not be the best turning motorcycle, it still holds its own. In our 2023 450 Shootout, most riders felt the Yamaha as the lightest bike when riding despite it being the heaviest of the bunch.

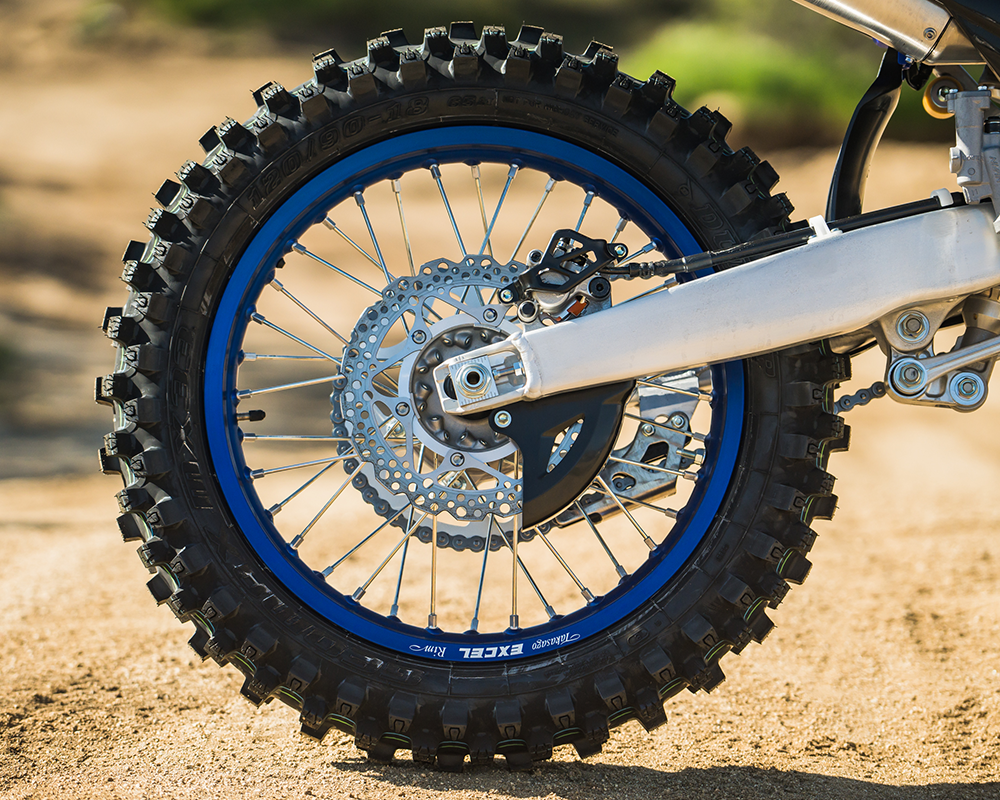

As mentioned in the power department, we upped the gearing from 13/50 to 14/52 mainly for handling reasons and not necessarily power reasons. By going to the bigger sprockets on both ends, it smoothed out the chassis feel quite a bit. On acceleration chop, it felt as if we had bigger wheels on the bike and it'd float right over small bumps and square edges. Every hit on the rear end feels smoother with the gearing change and it's a positive change in the handling department for us.

The bike has a longer feeling, heavier steering feel which is most noticeable in the trees and in tight turning scenarios which not all of our riders liked, but that translated to a more stable ride in faster or bumpier conditions. Even in the air where most bikes will show their weight, the YZF doesn’t show all of it as it still leans towards the light and nimble side.

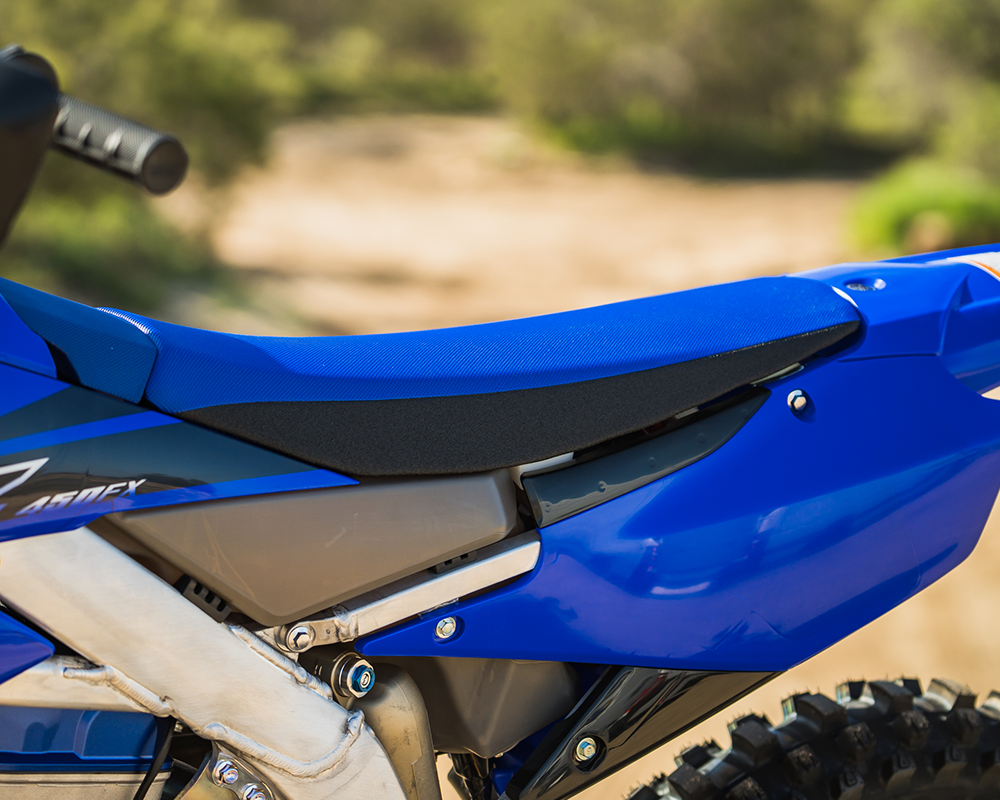

The cockpit on the YZF isn’t the best. It has a lower seat height that is a little more cupped out for today’s standards, and the distance from the seat to the pegs is a little cramped for most riders. Yamaha sells a tall seat as a GYTR accessory and all of our riders, tall and short, preferred it. However, some smaller riders did like the smaller cockpit feel as they felt more in control with a smaller all-around feel as opposed to when the taller seat stretched things out. The bar mounts are adjustable in the triple clamps and our group is 50/50 on what position they like. Stock, they come in the forward hole and backwards facing position but most like it the old way in the backwards hole but forward facing position.

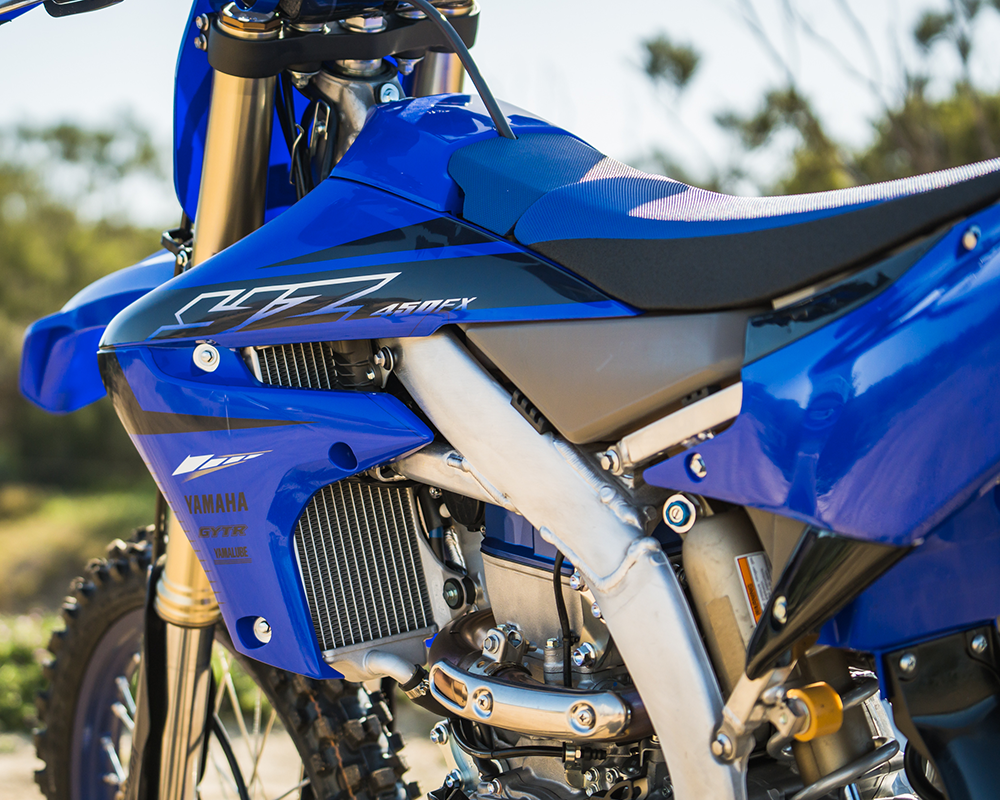

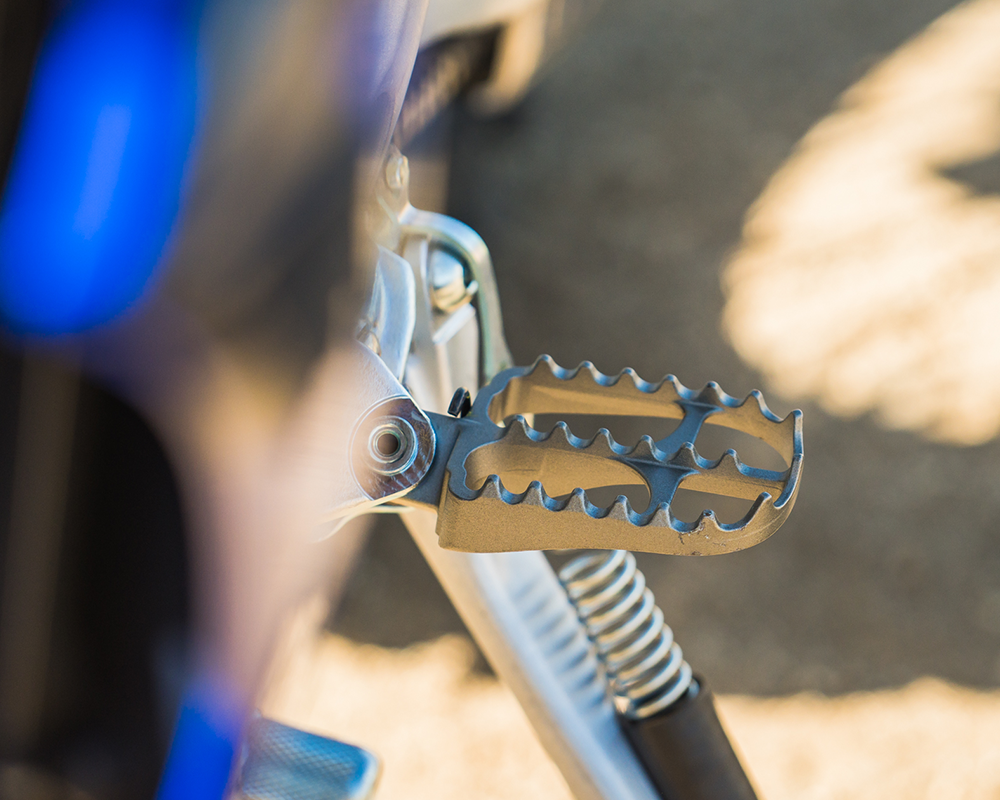

Gone are the days of the bike feeling like a pig. The bike doesn’t feel wide at any point anymore, the only “negative” is the sucking noise you hear at the airbox but that’s only temporarily noticeable. Footpegs are really good stock with a nice, wide platform and good grip. We’re fans of the grips and think they’re better than most other OEM grips.

Overall, the bike is built well too. We didn’t have any issues with broken spokes, broken welds, bolts falling out, etc. The ease of removing a shock with the stock tank is one of the best. Simply removing the seat and gas tank in just a couple of bolts opens up to quite a bit of the bike. If you have a desire to check valves, it’s all right there as well. No issues with the starting, and it usually started fairly quickly unlike the YZ250F’s which are known to take longer.

Brakes are average which isn’t a bad thing. The front brake doesn't feel all that powerful since it isn't as touchy as other bikes out there, but they are very progressive and provide ample stopping power. Some of our testers prefer this brake over others for the modulated feel it brings. Most of our riders like the smaller 240mm rear disc as it’s a little less grabby. The stock chain is built to last and will outdo the aluminum sprockets that come on it. Wheels are pretty strong, though we did get some smaller dents in them with all of the racing we did.

If you're looking to power lights on this bike, a WR450F stator and flywheel is needed to get a lot more capacity out of it. It's a simple plug-and-play solution and has the reliability and performance of a known OEM part which is a plus. You can read more about that HERE.

"But for most situations, the weight of the bike isn’t felt in a negative way, more so in a positive way. It helps keep the bike planted and straight, boosting that stability talked about earlier."


  • A very neutral, get on and go motorcycle for the masses.

Like most bikes we test these days, the YZ450FX is a very good bike. We’re lucky in that no one really truly puts out a bad bike that isn’t capable and appealing to any rider out there. However, where this Yamaha shines is that it is so appealing to so many people. It’s transitioned from a more peculiar bike that had a love it or hate it relationship with its riders to now being one of the most neutral bikes out there. It doesn’t really have many knock your socks off features and the spec sheet isn’t all that impressive, but once you get the bike moving everything works in unison.

The suspension is very good right out of the box. Don’t feel the need to have to get a revalve before you even ride it because it’ll surprise you. If anything, get the right springs and put some hours on it before trying anything else. Likewise, the motor is very capable and the GYTR Power Tuner app is like having an endless combination of aftermarket exhausts at your fingertips, except it’s free and no bike work is needed.

Really, we've come to learn that less is more on this bike. The more modifications and aftermarket goodies you install, you're almost just detuning this motorcycle. Clamps, engine mounts, exhuasts, etc. are all so good stock on this bike that you'll have a really hard time finding improvements - if anything you'll just make the bike worse. Trust us, we've tried a lot of stuff and usually go back to stock. To see what mods we 100% approve of, check out our 24 Hour Bike Build.

Durability on this bike has been rock solid over the past three years (including the 2021 and 2022 models) with just oil and filter changes. Our oil changes usually took place every 4-5 hours due to its lower oil capacity and we changed the oil filter every other oil change. The air filter is one of the easiest to get to and change if needed, but being up high helps keep it cleaner than most. Yamaha’s durability has been no joke in years past and it continues to be to this day. The only issue we've come upon on this bike is a blown water pump seal after overheating the bike, but there have been zero issues otherwise.

Lastly, just because this is an “off-road bike,” don’t let that deter you from taking it to the motocross tracks. For the average rider, the softer suspension settings and smoother power delivery will work in your favor. It’s easier and more comforting to ride than the standard MX model which fits the bill for most riders out there. Oh yeah, it has a kickstand too!

"Just because this is an “off-road bike,” don’t let that deter you from taking it to the motocross tracks. For the average rider, the softer suspension settings and smoother power delivery will work in your favor."
